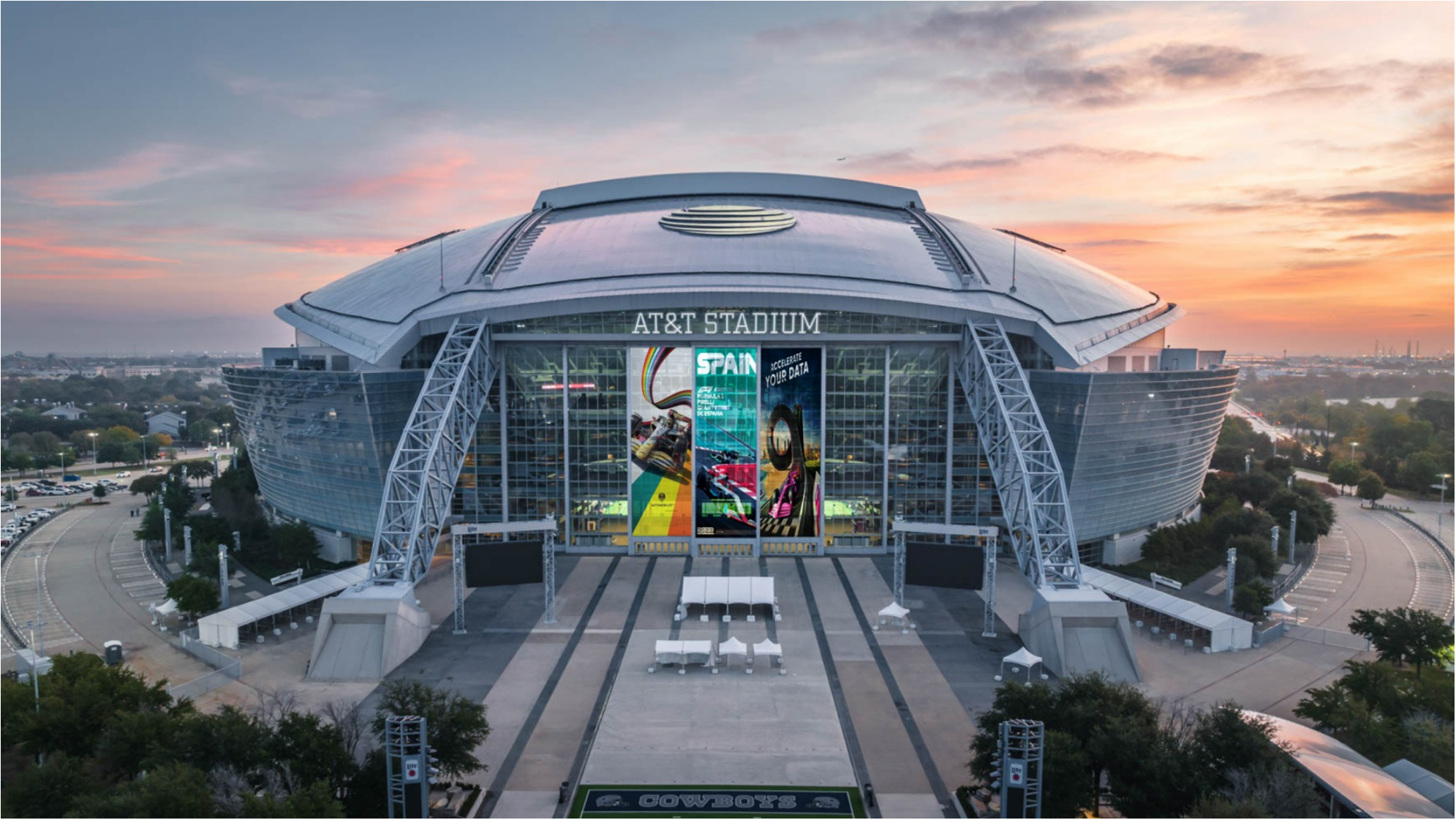

Stadiums & Arenas
Facades built to be seen from the parking lot — content visible in daylight, unmissable after dark.

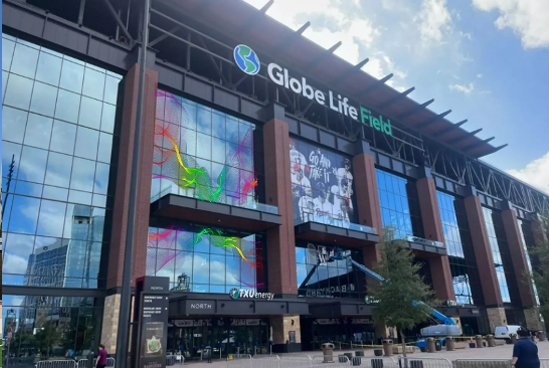

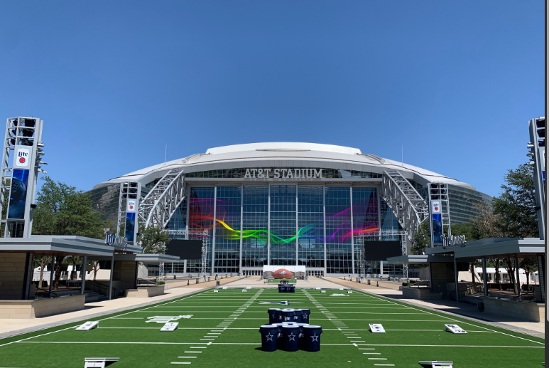

Large-venue glass facades demand higher brightness and durability than an indoor installation. 3DIGIVIEW's outdoor-rated transparent LED is engineered for exactly that: sponsor branding, live moments, and wayfinding on the building's biggest surface, without covering the architecture it's mounted to.Inside the Bowl
Indoor-rated installations bring the same transparent technology to concourses and scoreboards, where visibility and durability matter just as much.
Recommended Specs: 6P / 8P
Featured Proposal — pick one wording
Currently in proposal for a major U.S. sports and entertainment venue: an 8mm-pitch transparent LED installation (3,000 nit brightness, >82% transparency) engineered for large-scale glass facades — rated for outdoor use (−10°C to 50°C) with a 100,000-hour LED lifetime.
| Model | P8G1-1080/480 |
|---|---|
 | |
| Pixel Pitch (mm) | 8 |
| Transparency Aperture (%) | >82 |
| Film Size (mm) | 480(W) x 1080(H) |
| Display Size (mm) | TBD |
| Set Size (mm) | TBD |
| Pixel Per Panel | 135 x 60 (8,100) |
| Pixel Per Panel (Set) | TBD |
| Film unit | TBD |
| LED PKG | C 1313 Bypass |
| Driver IC | GRGB037A |
| Brightness | Typ. 3000 nit(cd/㎡) |
| Viewing Angle | 178 x 178 (Full Width Half Maximum) |
| Operation Temperature ( C) | -10 ~ 50 C |
| LED Lifetime | 100,000 hour |
| Power Consumption (W) | Typ. 125 (For Video) |
| Daylight Dimming Control | 256 step |
| Screen Color Temperature (K) | 9,500 |
| Input Voltage | AC: 110V~240V, 50~60Hz |
